1 / 12Specs
Year
2022
Condition
Used
Trailer
- Type
- Enclosed
- Length
- 8.5 x 26 ft
- GVWR
- 14,000 lb
- Features
- Winch, Ramps, Electric brakes, Beavertail / dovetail
Description
Room for all the toys or equipment you want for travel or work.

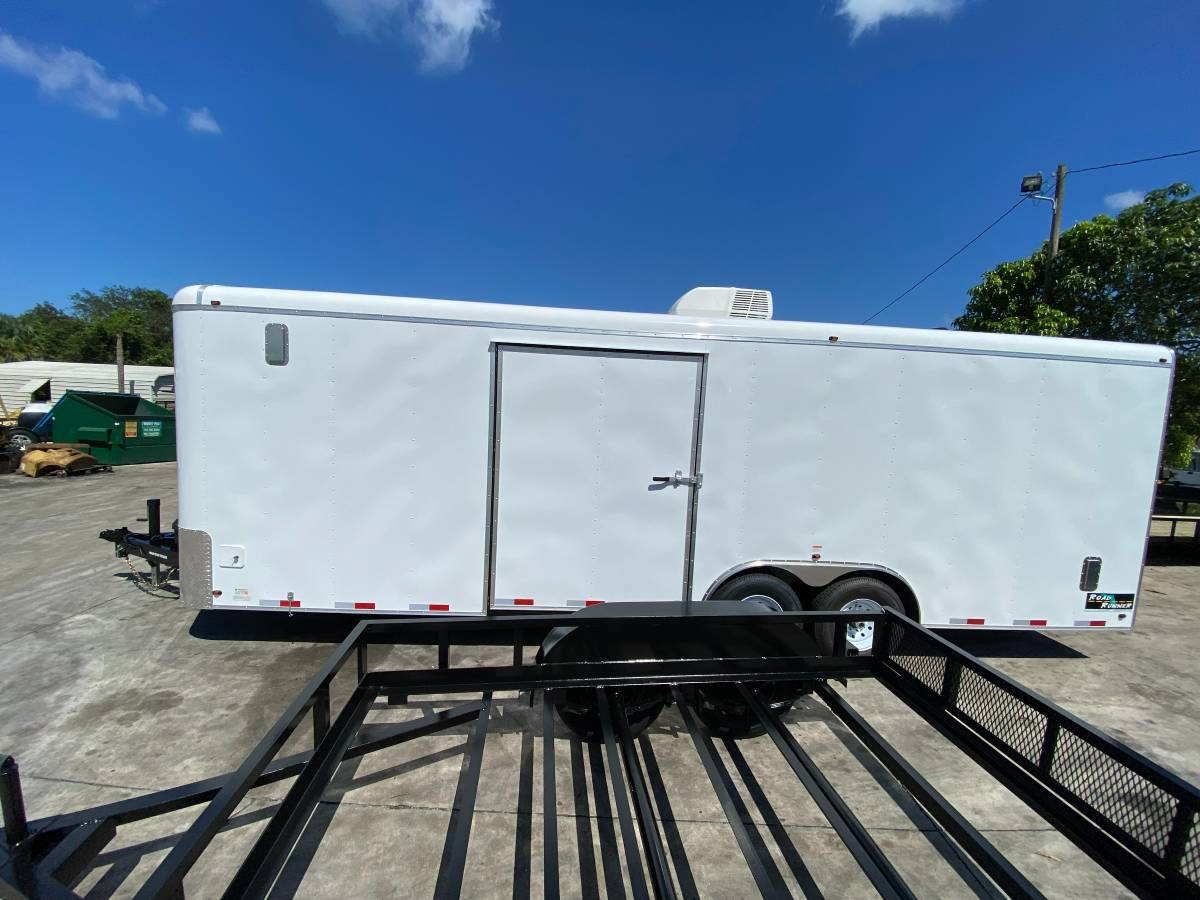

Model: 8'6"x26' V-Nose 14K VIN: 1Z9BV2621NF147913
Heavy duty enclosed trailer w/7'5" ceiling HEAVY HAULER

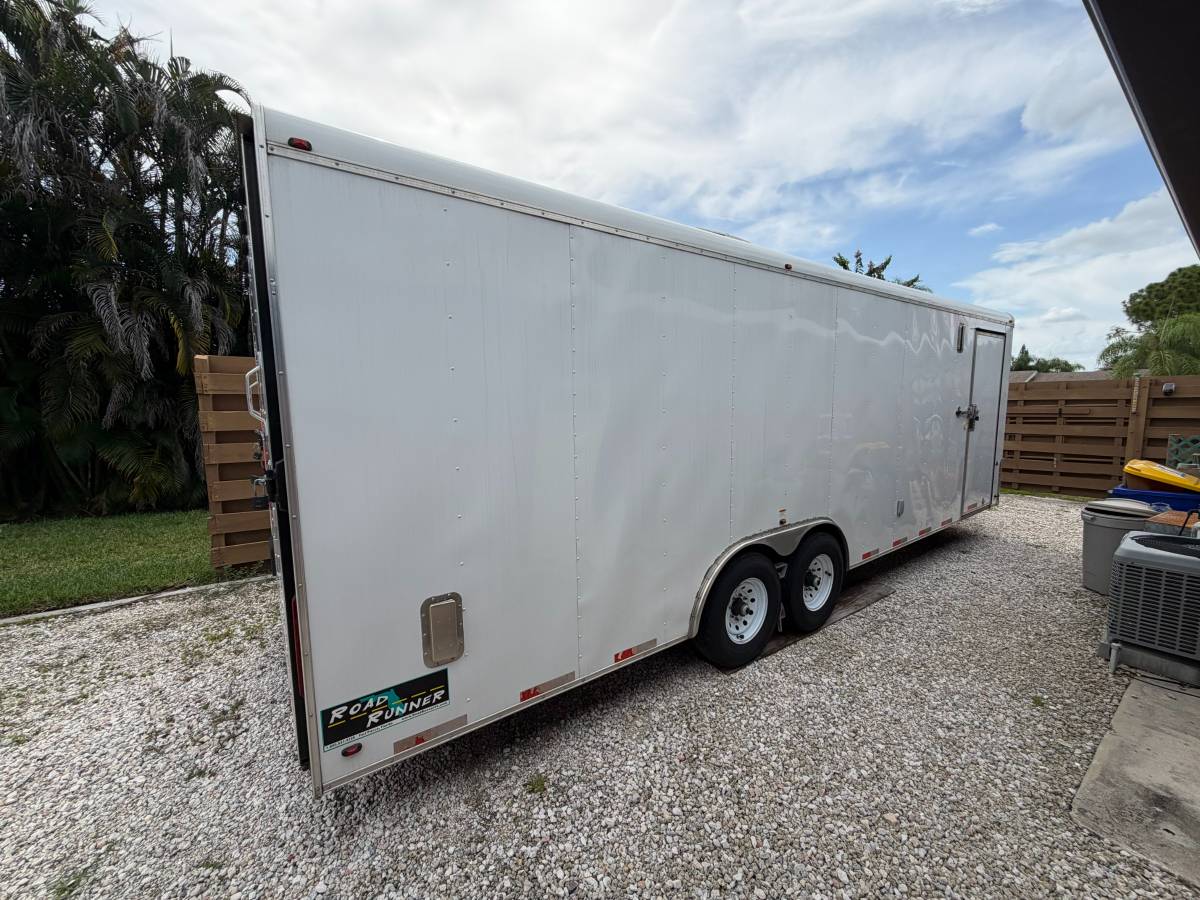

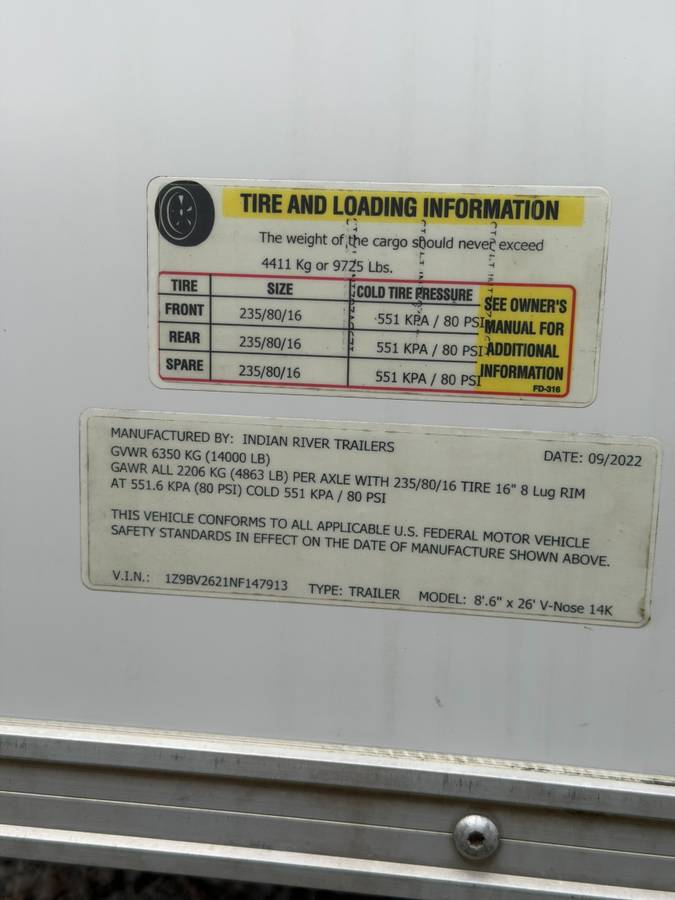

Axles Dexter 7000# torsion w/electric brakes 14,000# GVWR
Tires ST235/80R16 Upgraded LR-G 14 Ply 4080# w/2 mounted spares

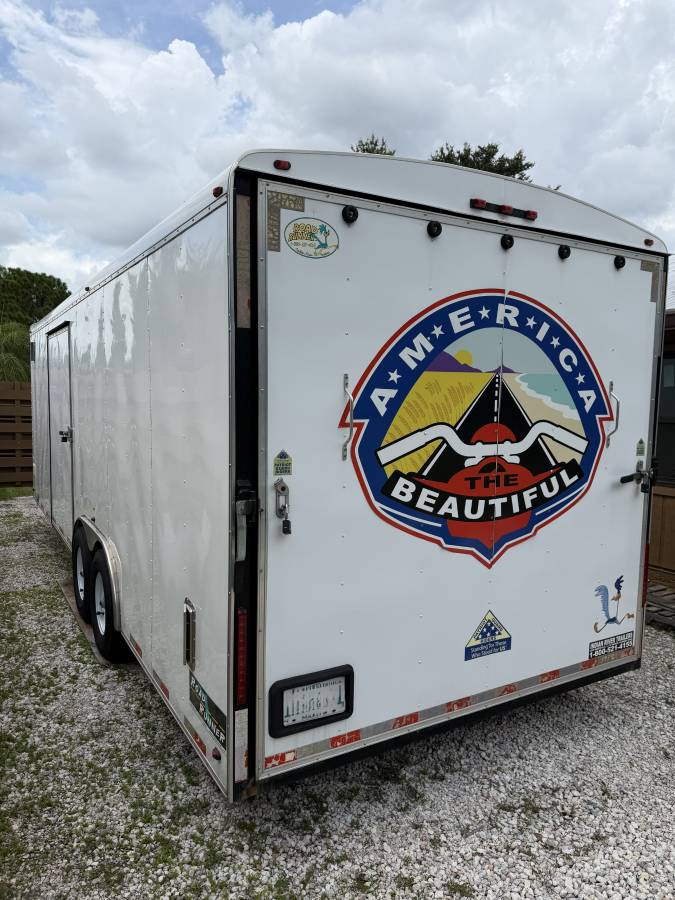

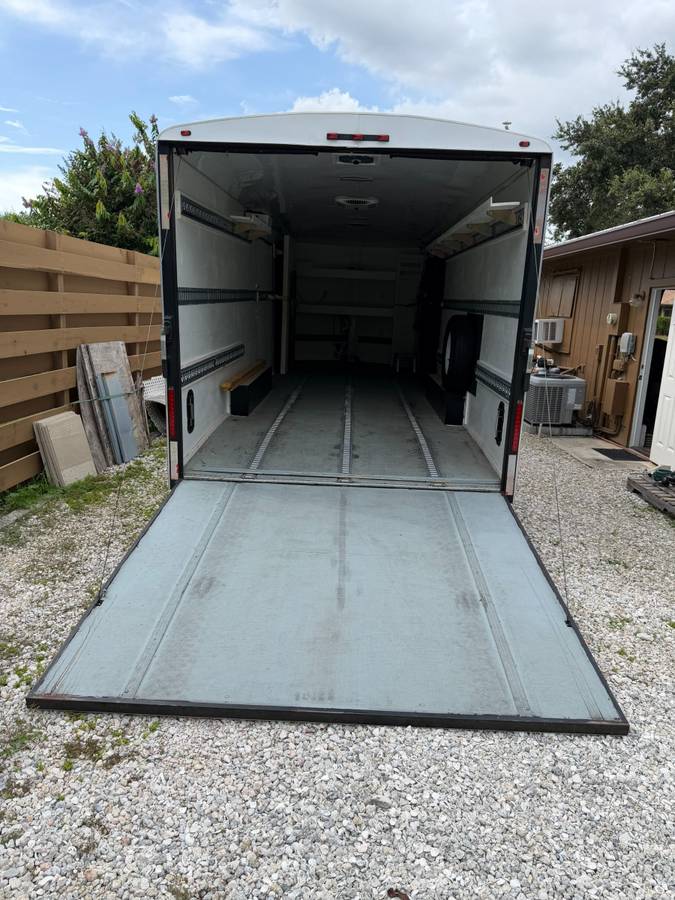

Ramp door 92" wide x 87" tall 5000#
36" wide x 80" tall curb side door with flush lock and bar lock
60" wide x 80" tall road side door

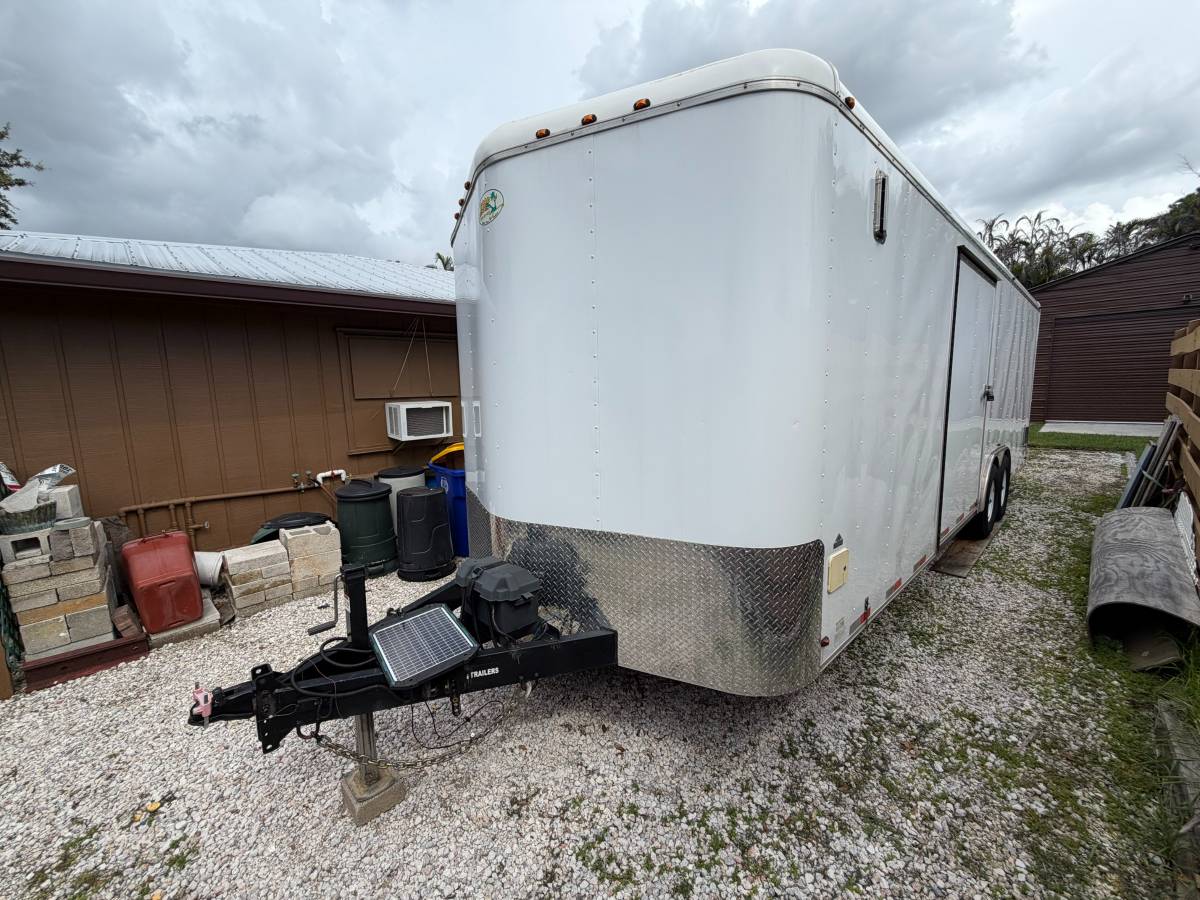

Rounded nose w/60" tounge
24″ Diamond Plate Stoneguard on front
Beavertail Frame

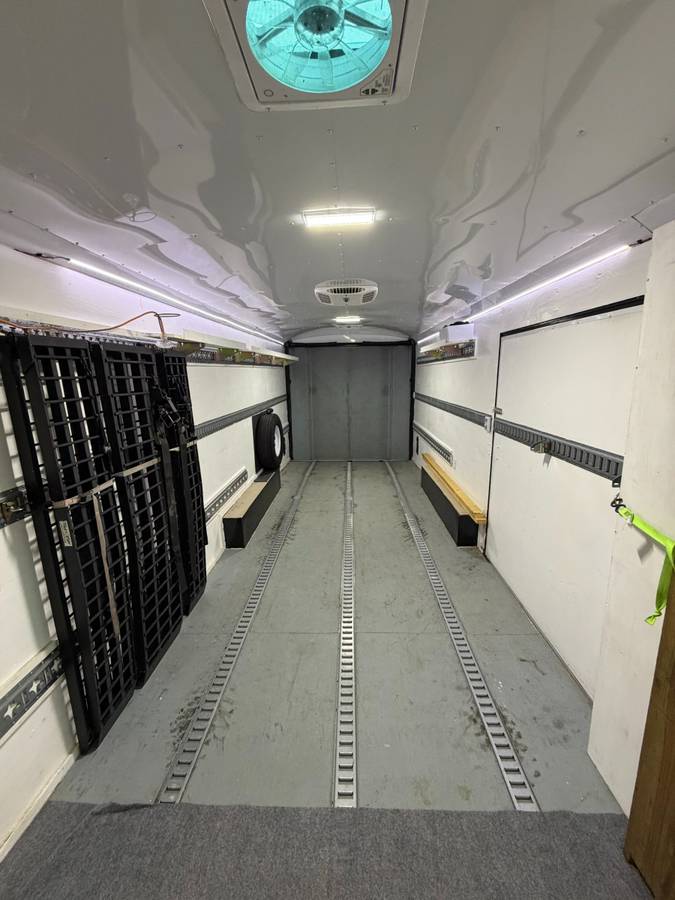

2-12V switched dome lights
2-12V switched led lighting strips

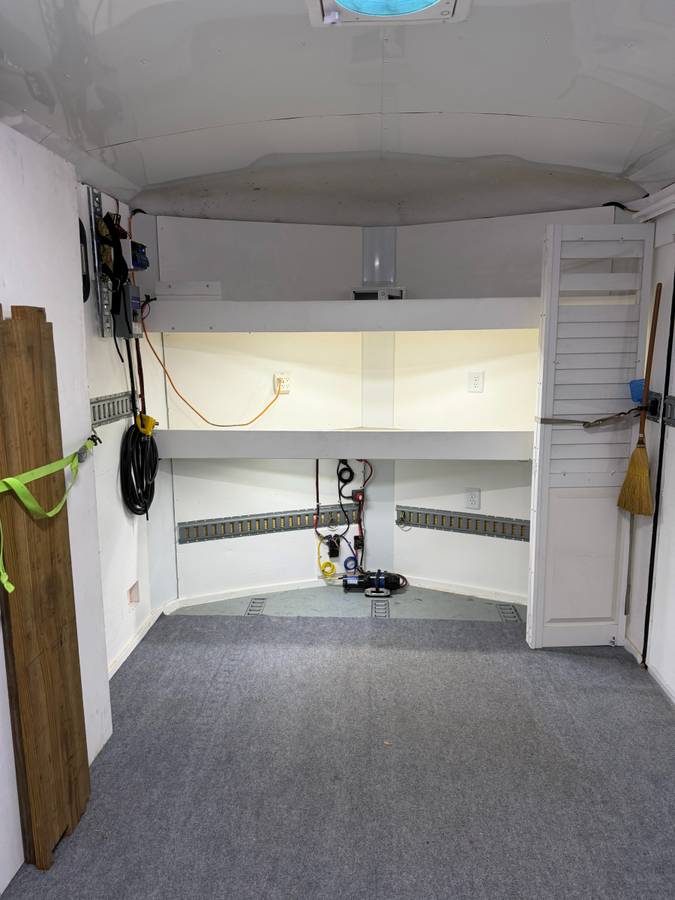

2-12V switched lighting in nose shelves
2-12V powered roof vents
LED Strip tail lights
30 Amp electric service

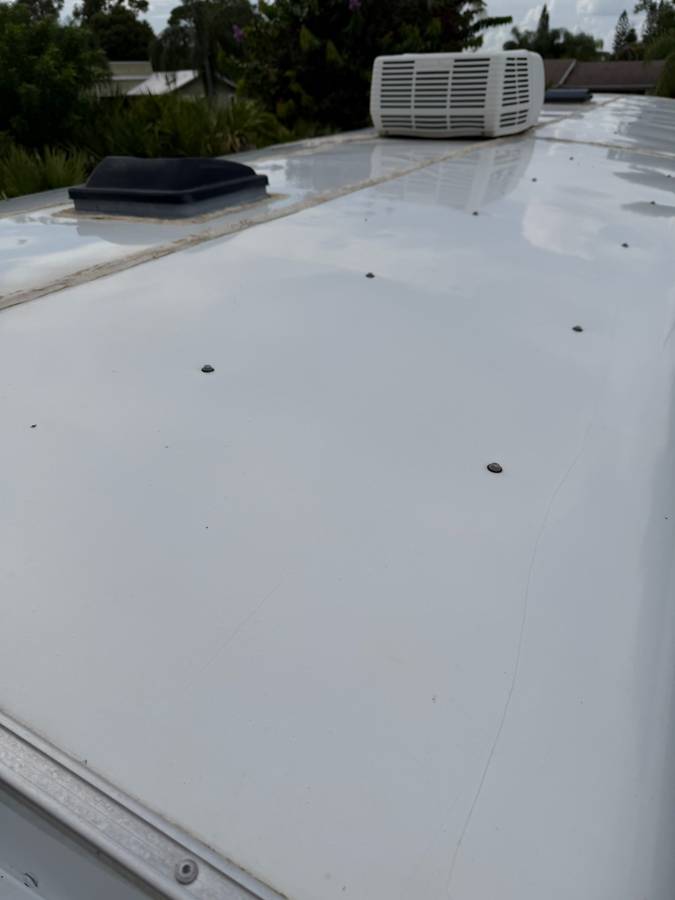

12500 btu roof airconditioner
4-120V outlets inside and 1 outside
12V 4000# winch w/remote control

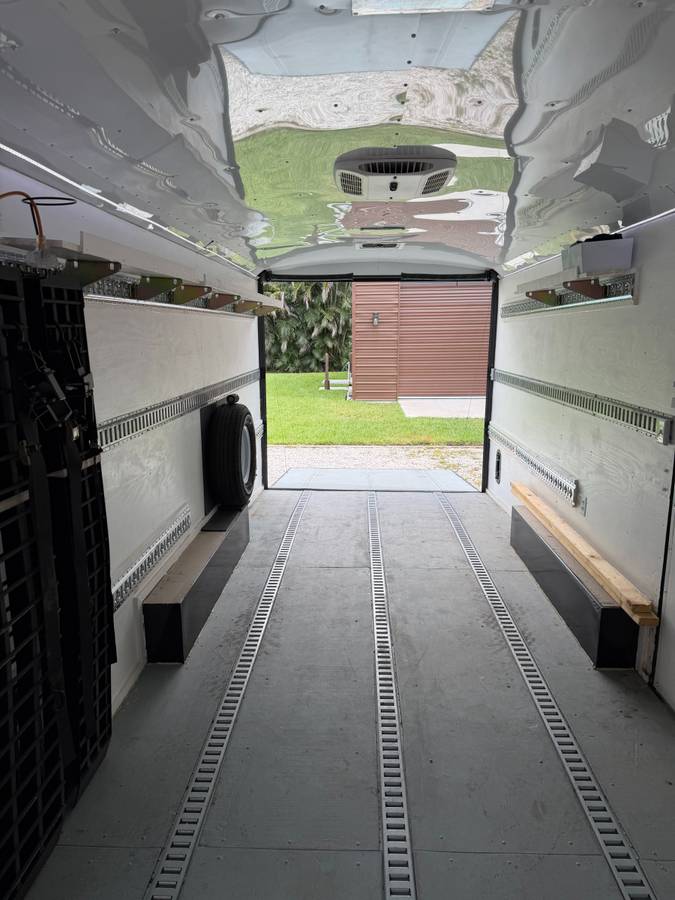

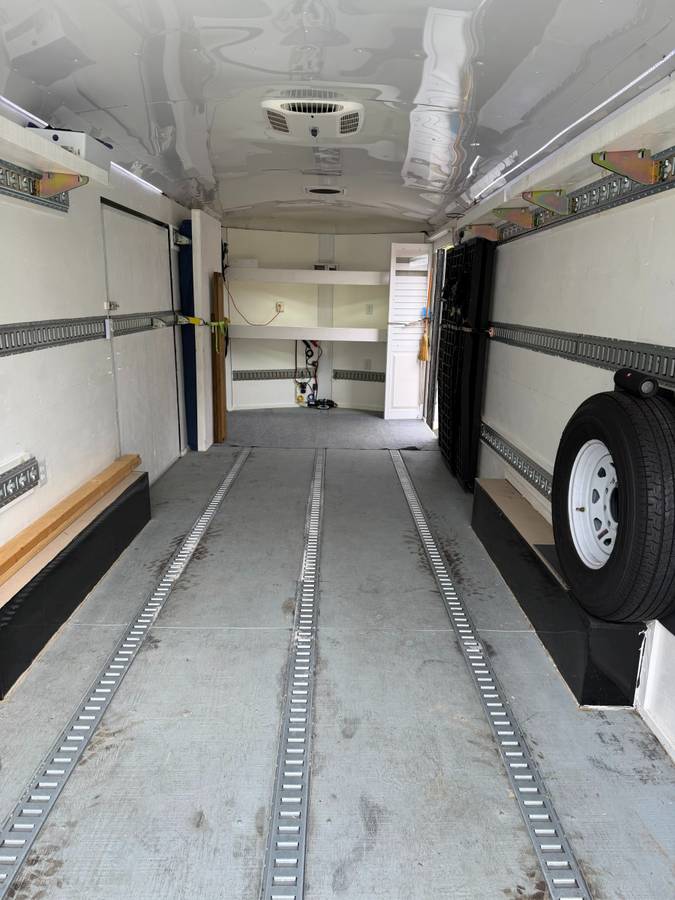

~100' e-track and x-track on floor and walls
Double decked painted plywood floor
Plywood painted insulated walls
Aluminum finished insulated ceiling
Shelving on both sides
4 metal adjustable corner vents
from roadrunner site...
-- We use tubular wall frames which are stronger than the industry standard U-channel..
-- We add a T Brace on all double axle trailers to increase strength.
-- All sides doors are constructed with a single full length piano hinge.
-- Our floor joists are 3/16" thick - much stronger than the standard.
-- We build a square tube subframe.

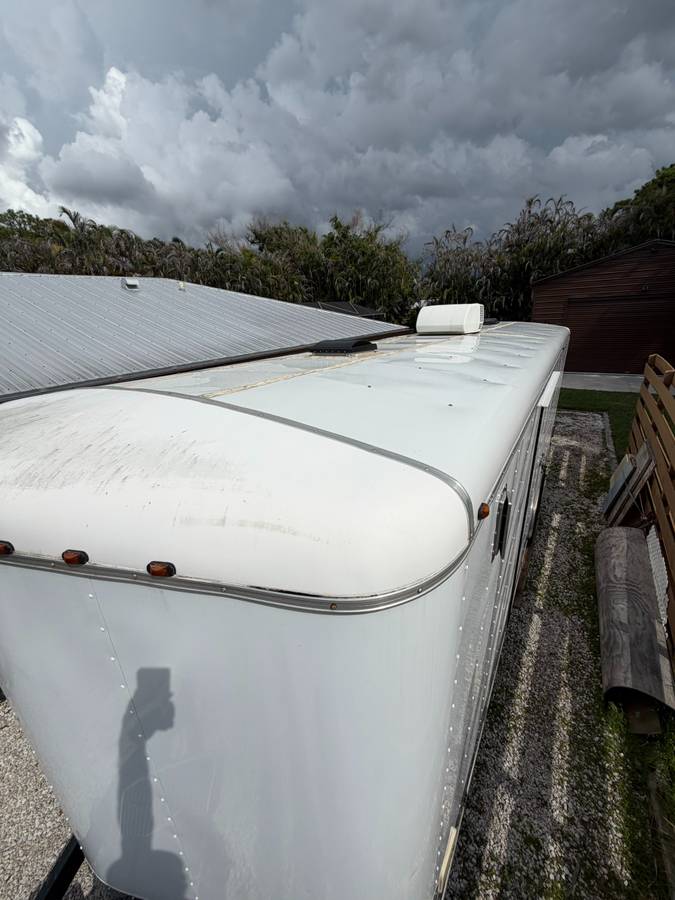

-- Our roofs are a cambered tubular roof with center supports.
-- All trailers come with an aluminum arced roof not a. tin flat roof.
-- All rear doors have 3x more weld than competitors for added strength.
-- Our rear doors have reinforced attachment sites to handle repeated use..
-- Our aluminum skin is .032 -.040 versus the industry standard of .024.
-- We primer, paint and undercoat all frames leaving no bare metal.
